  • 產品名稱 :

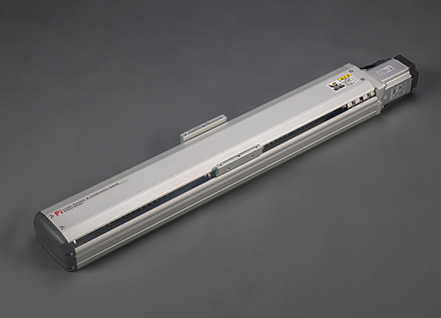

    滚珠螺杆式滑台

  • 產品型號 :

    RMH10-100W

  • 產品特色 :

    最大水平负载:50(Kg)
    最大垂直负载:12(Kg)

  • 规格特性 :

    一般环境使用

  • 重覆精度 :

    ±0.01
  • 導程 :

  • 最高速度 :

    250/500/1000/1600

  • 標準行程 :

    100-1050mm

产品说明 型號編碼 基本仕樣 容許負載力距表 尺寸图
RMH10 Series 螺杆驱动
最大行程 1050mm
最高速度 1600mm/s
马达容量 100w
滚珠螺焊 16mm
直线滑轨 20x18-1支
型号表达方式
RMH10
本体型号
L5 100 M M10B C 4-0001
特注样式
螺杆导程 行程 马达位置 马达厂牌,功率 原点感应器 端点极限感应器
05  5mm 100-1050mm
(间隔50)
M马达直接 P 国际(标准)
10   100w   b
A 马达侧-内置 1
1只-内置
10  10mm BC马达外露 M 三菱(标准)
20
B 反马达侧-内置 2
2只-内置
20  20mm BM马达下折 Y 安川(标准)
40
C 马达侧-外挂 3
1只-外挂
32  32mm BR马达右折 T 台达
75
D 反马达侧-外挂 4
2只-外挂
BL马达左折 E 无 No SENSOR 5
无No SENSOR
基本样式
性能
位置重復精度 Repeatability(mm) ±0.01
螺桿導程 Belt Lead(mm) 5 10 20 32
最高速度 Maximum Speed(mm/s) 250 500 1000 1600
最大可搬重量
Maximum Payload
水平使用 kg Horizontal(kg) 50 30 18 5
垂直使用 kg Vertical(kg) 12 8 3 -
定格推力 Rated Thrust(N) 341 170 85 53
標準行程 Stroke Pitch(mm) 100-1050mm/50間隔
部品
AC伺服馬達容量 AC Servo Motor Output(W) 100
滚珠螺杆外徑 Ball Screw φ(mm) C7φ16
高剛性直線滑軌 High Rigidity Linear Guide(mm) W20xH18
聯軸器 Couping(mm) 8x10
原點感應器Home Sensor 外掛 Outside EE-SX672(NPN)
內置 Built-In EE-SX674(NPN)

感应器接线圈 <原点及端点> Sensor Layout
*行程超過750時,會產生螺杆偏擺,此時請將速度調降。

*When the stroke is over 750mm,the run-out of the ballscrew will occur.
We recommend to low down the working speed under this circumstances

*馬達加減速設定0.2秒

*Acceleration and deacceleration value is set 0.2 second.




容许负载力距表 N.m 靜態容許負載慣量 N.m
(單位:MM)
水平安裝 Horlzontal Installation A B C


5
LEAD
30KG 547 42 42
40KG 391 29 29
50KG 298 22 21


10
LEAD
15KG 521 84 80
25KG 298 47 44
30KG 242 37 35


20
LEAD
5KG 675 224 193
10KG 330 107 93
18KG 175 55 48


32
LEAD
3KG 486 259 198
5KG 288 152 116
- - - -
(單位:MM)
墙面安裝 Wall Installation A B C


2
LEAD
25KG 52 53 670
35KG 35 35 455
50KG 21 22 298


5
LEAD
10KG 124 131 770
20KG 58 61 382
30KG 35 37 242


10
LEAD
6KG 160 185 562
12KG 76 88 272
18KG 48 55 175


20
LEAD
2KG 300 393 733
5KG 116 152 288
- - - -
(單位:MM)
垂直安裝 Vertical Installation A C


2
LEAD
5KG 310 310
8KG 192 192
12KG 129 129


5
LEAD
4KG 344 344
8KG 172 172
- - -


10
LEAD
2KG 546 546
3KG 364 364
- - -
(單位:MM)
水平使用時 (單位:N.m) Static loading Moment
MY 110(N.M)
MP 110(N.M)
MR 120(N.M)
*力矩表所表示的數據,代表重心。

*The torque value in the chart indicate the center of gravity

*符合型錄規範的正常使用下保證壽命為5000公里。

*Operation life is 5000km when the product is using under the specified conditions.

*倒吊使用無法套用標準規範如有需求請洽詢我司業務

*Data information is not for ceiling-mount inverse use. Contact us for the details if you want to apply ceiling-mount inverse usage.

搭配伺服马达一栏表 Suittable Motor Brand
廠牌 Brand 馬達記號 Mark 煞車有無 Brake 馬達容量 Watp 電源電壓 (AC-Voltage) 伺服馬達型號 Motor Model 驅動器型號 Driver Model
三菱
Mitsubishi
M 無煞車(水平仕樣)
No Brake(Horizontal Type)
100 220 HG-KR13 MR-J4-10A
有煞車(水平仕樣)
With Brake(Horizontal Type)
100 220 HG-KR13B MR-J4-10A
松下
Panasonic
P 無煞車(水平仕樣)
No Brake(Horizontal Type)
100 220 MSMD012G1U MADHT1505
有煞車(水平仕樣)
With Brake(Horizontal Type)
100 220 MSMD012G1V MADHT1505
臺達
Delta
T 無煞車(水平仕樣)
No Brake(Horizontal Type)
100 220 ECMA-C20401ES ASD-B20121-B
有煞車(水平仕樣)
With Brake(Horizontal Type)
100 220 ECMA-C20401FS ASD-B20121-B
RMH10轴/1-axis 螺杆驱动
