  • 產品名稱 :

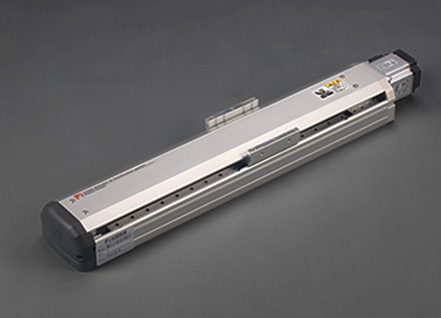

    标准螺杆滑台

  • 產品型號 :

    RMH13-400W

  • 產品特色 :

    最大水平负载:70(Kg)
    最大垂直负载:17(Kg)

  • 规格特性 :

    一般环境使用

  • 重覆精度 :

    ±0.01
  • 導程 :

    5/10/20/32

  • 最高速度 :

    250/500/1000/1600

  • 標準行程 :

    100-1050MM

产品说明 型號編碼 基本仕樣 容許負載力距表 尺寸图
RMH13 Series 螺杆驱动
最大行程 1050mm
最高速度 1600mm/s
马达容量 400w
滚珠螺焊 16mm
直线滑轨 15x12.5-2支
型号表达方式
RMH13
本体型号
L5 100 M M40B C 4-0001
特注样式
螺杆导程 行程 马达位置 马达厂牌,功率 原点感应器 端点极限感应器
05  5mm 100-1050mm
(间隔50)
M马达直接 P 国际(标准)
10   100w   b
A 马达侧-内置 1
1只-内置
10  10mm BC马达外露 M 三菱(标准)
20
B 反马达侧-内置 2
2只-内置
20  20mm BM马达下折 Y 安川(标准)
40
C 马达侧-外挂 3
1只-外挂
32  32mm BR马达右折 T 台达
75
D 反马达侧-外挂 4
2只-外挂
BL马达左折 E 无 No SENSOR 5
无No SENSOR
基本样式
性能
位置重復精度 Repeatability(mm) ±0.01
螺桿導程 Belt Lead(mm) 5 10 20 32
最高速度 Maximum Speed(mm/s) 250 500 1000 1600
最大可搬重量
Maximum Payload
水平使用 kg Horizontal(kg) 70 47 24 13
垂直使用 kg Vertical(kg) 17 12 6 -
定格推力 Rated Thrust(N) 1388 694 433 347
標準行程 Stroke Pitch(mm) 100-1050mm/50間隔
部品
AC伺服馬達容量 AC Servo Motor Output(W) 400
滚珠螺杆外徑 Ball Screw φ(mm) C7φ16
高剛性直線滑軌 High Rigidity Linear Guide(mm) W15xH12.5
聯軸器 Couping(mm) 10x14
原點感應器Home Sensor 外掛 Outside EE-SX672(NPN)
內置 Built-In EE-SX674(NPN)

感应器接线圈 <原点及端点> Sensor Layout
*行程超過750時,會產生螺杆偏擺,此時請將速度調降。

*When the stroke is over 750mm,the run-out of the ballscrew will occur.
We recommend to low down the working speed under this circumstances

*馬達加減速設定0.2秒

*Acceleration and deacceleration value is set 0.2 second.




容许负载力距表 N.m 靜態容許負載慣量 N.m
(單位:MM)
水平安裝 Horlzontal Installation A B C


5
LEAD
40KG 795 63 225
55KG 558 43 155
70KG 422 32 115


10
LEAD
25KG 588 95 276
35KG 410 65 190
47KG 295 46 135


20
LEAD
6KG 1068 355 710
15KG 416 136 275
24KG 252 81 166


32
LEAD
7KG 385 205 298
13KG 204 106 156
- - - -
(單位:MM)
墙面安裝 Wall Installation A B C


5
LEAD
30KG 310 88 1066
50KG 172 49 620
70KG 115 32 422


10
LEAD
20KG 351 122 743
30KG 225 78 484
47KG 135 46 294


20
LEAD
5KG 852 428 1227
12KG 345 173 522
24KG 166 81 253


20
LEAD
6KG 350 240 453
13KG 155 106 204
- - - -
(單位:MM)
垂直安裝 Vertical Installation A C


5
LEAD
5KG 580 580
11KG 264 264
17KG 170 170


10
LEAD
4KG 644 644
8KG 322 322
12kg 215 215


20
LEAD
3KG 667 667
6KG 335 335
- - -
(單位:MM)
水平使用時 (單位:N.m) Static loading Moment
MY 174(N.M)
MP 175(N.M)
MR 153(N.M)
*力矩表所表示的數據,代表重心。

*The torque value in the chart indicate the center of gravity

*符合型錄規範的正常使用下保證壽命為5000公里。

*Operation life is 5000km when the product is using under the specified conditions.

*倒吊使用無法套用標準規範如有需求請洽詢我司業務

*Data information is not for ceiling-mount inverse use. Contact us for the details if you want to apply ceiling-mount inverse usage.

搭配伺服马达一栏表 Suittable Motor Brand
廠牌 Brand 馬達記號 Mark 煞車有無 Brake 馬達容量 Watp 電源電壓 (AC-Voltage) 伺服馬達型號 Motor Model 驅動器型號 Driver Model
三菱
Mitsubishi
M 無煞車(水平仕樣)
No Brake(Horizontal Type)
400 220 HG-KR43 MR-J4-40A
有煞車(水平仕樣)
With Brake(Vertical Type)
400 220 HG-KR43B MR-J4-40A
松下
Panasonic
P 無煞車(水平仕樣)
No Brake(Horizontal Type)
400 220 MHMD042G1U MBDHT2510
有煞車(水平仕樣)
With Brake(Vertical Type)
400 220 MHMD042G1V MBDHT2510
臺達
Delta
T 無煞車(水平仕樣)
No Brake(Horizontal Type)
400 220 ECMA-C20604ES ASD-B20421-B
有煞車(水平仕樣)
With Brake(Vertical Type)
400 220 ECMA-C20604FS ASD-B20421-B
RMH13轴/1-axis 螺杆驱动
